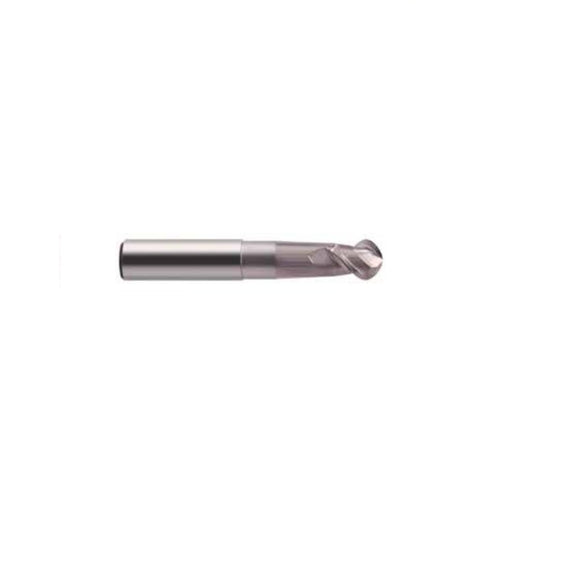

112303 2 FL Extended Neck 30Deg Helix Ball Nose End Mill (ALU XP EUROPA TOOL)

europa tool alu xp

Extended Neck 50º Helix

Ball Nose ø6.0mm - 20.0mm

Suitable for high speed machining of aluminium and other non-ferrous materials. Excellent surface finishes, superior chip removal. Neck relief. Mirror polished flutes.

EUROPA CODE ORDCODE DIAMETER DC RADIUS RE SHANK DIAMETER DMM LENGTH OF CUT APMX EFFECTIVE LENGTH LU OVERALL LENGTH OAL NECK DIAMETER DN 1123030600 6.0 3.0 6 5.5 25.0 55 5.4 1123030800 8.0 4.0 8 7.0 30.0 65 7.2 1123031000 10.0 5.0 10 8.5 35.0 75 9.0 1123031200 12.0 6.0 12 10.5 40.0 75 11.0 1123031600 16.0 8.0 16 14.0 50.0 90 14.5 1123032000 20.0 10.0 20 17.0 50.0 100 18.0
