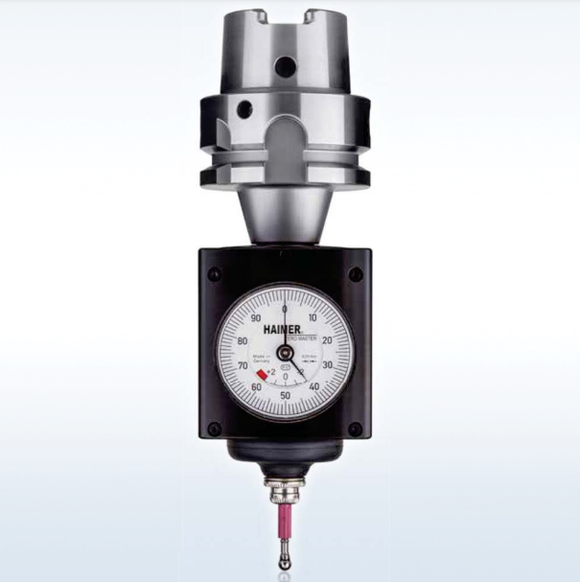

3D-Sensors and centering devices

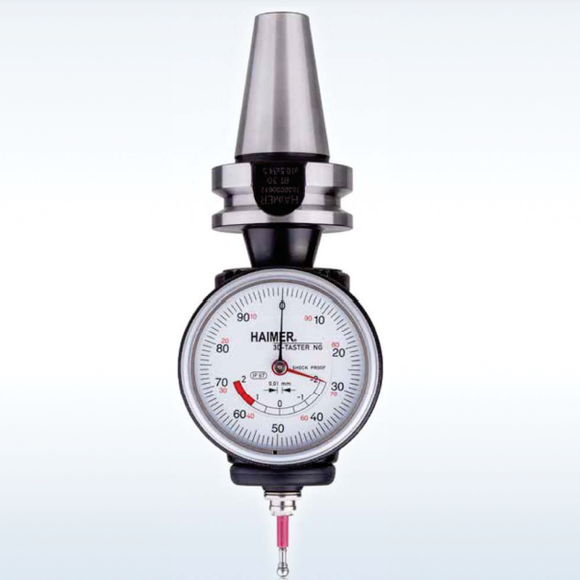

The 3D-Sensor New Generation is a further development of our worldwide accepted and proven Universal 3D-Sensor. Its distinguishing features are improved mechanics and a new and compact design.

Advantages:

  • Compact and easy to grip casing, no restriction to working area
  • Precise display of spindle position with large 1/100 mm dial gauge (2 hands)
  • Utmost precision of 0.01 mm
  • Marked overrun distance (safety distance)
  • IP 67 waterproof

Functions:

  • Aligning machine spindles to work piece edges and reference edges (X-, Y-, Z-axis)
  • Set zeros
  • Centre borings and shafts
  • Measuring lengths and depths
  • Checking straightness and levelness of surfaces
  • Aligning work pieces and vices
  • Quick, without calculations, no mistakes with algebraic signs

Please take note: The given measuring precision of 0.01 mm only applies, if the original HAIMER probe tips are used.
