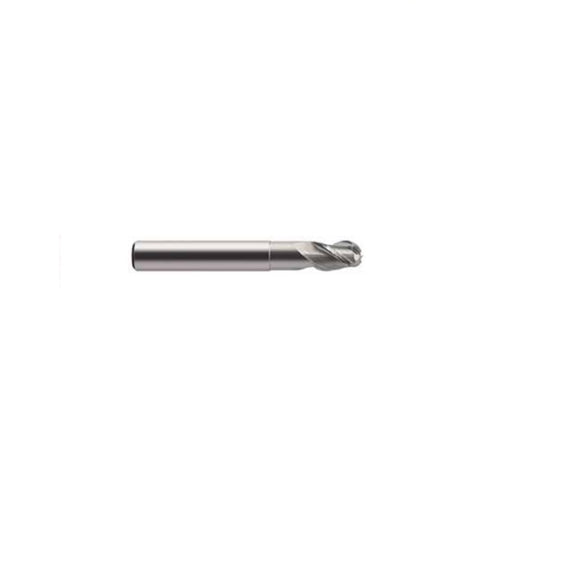

116303 3 Fl Extended Neck 40Deg Helix Ball Nose End Mill for Aluminium ( ALU XP EUROPA TOOL)

Extended Neck 40º Helix Ball Nose
ø2.0mm - 16.0mm
EUROPA CODE ORDCODE DIAMETER DC RADIUS RE SHANK DIAMETER DMM LENGTH OF CUT APMX EFFECTIVE LENGTH LU OVERALL LENGTH OAL NECK DIAMETER DN 1163030200 2.0 1.0 6 3.0 5.0 60 1.9 1163030250 2.5 1.25 6 4.0 6.0 60 2.4 1163030300 3.0 1.5 6 4.5 6.5 60 2.8 1163030350 3.5 1.75 6 5.0 7.0 65 3.2 1163030400 4.0 2.0 6 6.0 8.0 65 3.7 1163030500 5.0 2.5 6 7.5 10.0 65 4.6 1163030600 6.0 3.0 6 9.0 12.0 75 5.6 1163030800 8.0 4.0 8 12.0 25.0 75 7.4 1163031000 10.0 5.0 10 15.0 30.0 80 9.4 1163031200 12.0 6.0 12 18.0 36.0 90 11.4 1163031600 16.0 8.0 16 24.0 40.0 100 15.4
