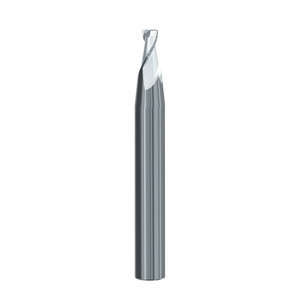

6° Taper / 4mm x R0.4 - 2 Flute Solid Carbide Uncoated Tapered Torus End Mill Turbine - Emuge Franken
3445.06004A
Turbine tapered carbide torus end mill for roughing applications in aluminium alloys and plastics.
Product features and benefits:
- Design with two flutes and various taper angles.
- Polished chip space avoids built-up edge formation and improves chip removal.
- Ideal for pre-machining turbine components or other complex 5-axis components.
- Multi-functional tool.
- Suitable for roughing
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

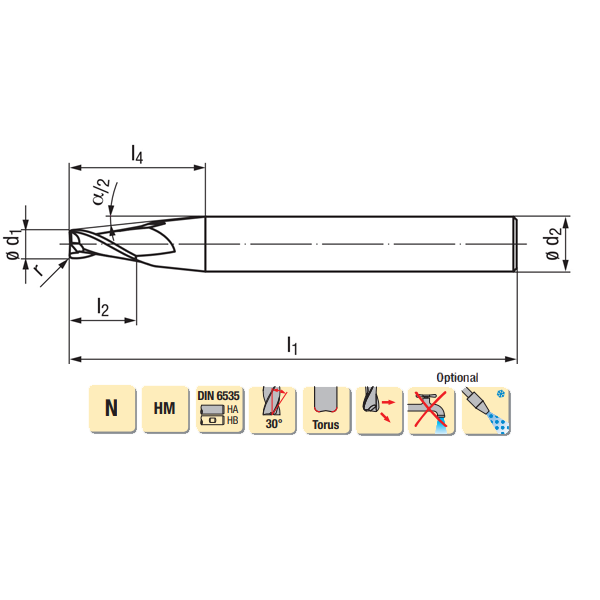

| Taper Angle (α/2) | 6° |
| Cutting Diameter (Ød1) | 4mm |
| Radius (r1) |
0.4mm |
| Radius Tolerance | ±0,01mm |
| Cutting Length (l2) | 8mm |
| Length of shank connection (l4) | 20mm |
| Overall Length (l1) | 63mm |
| Shank Diameter (Ød2) | 8mm |
| Shank Diameter Tolerance | h6 |
| Flutes (Z) | 2 |
| Tool Interface | Straight Shank |
| Tool Interface Norm | DIN 6535 |
| Coating | Uncoated |
| Internal Coolant Supply | Without internal cooling |
| Helix Angle | 30° |
