M1.6 x 0.35 A-POT DIN 371 Spiral Point HSS-PM Tap TiCN Coated For General Use - OSG
OSG-48145118

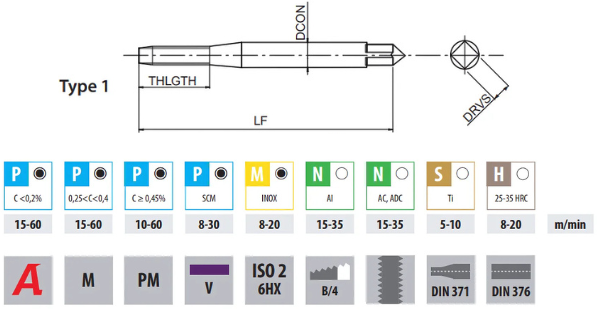

A-POT - Metric - DIN 371 - Type 1
Product features and benefits:
- First choice in quality and performance
- Powder metal spiral-point cutting tap for through holes
- Multilayer TiCN coating
- High speed tapping in general steels, aluminium, stainless steels
| Thread Type | M |
| Thread Diameter (TD) | 1.6mm |
| Pitch (TP) | 0.35mm |
| Functional Length (LF) | 40mm |
| Thread Length (THLGTH) | 8mm |
| Shank Diameter (DCON) | 2.5mm |
| Drive Size (DRVS) | 2.1mm |
| Number of Flutes (NOF) | 2 |
| Pre-machined Hole Diameter (PHD) | 1.25mm |
| DIN | DIN 371 |
