M10 x 1 A-SFT Metric Fine DIN 371 Spiral Flute HSS-PM Tap TiCN Coated For General Use - OSG
OSG-48139607

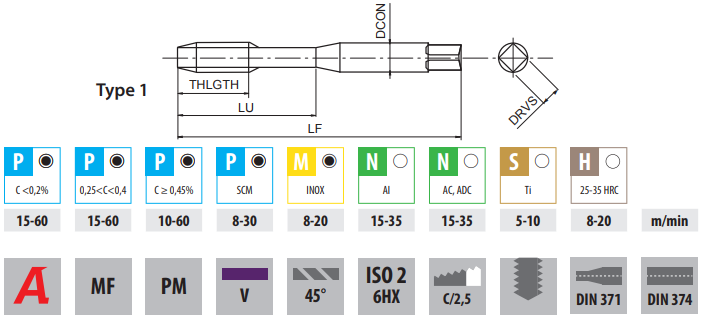

A-SFT - Metric Fine - DIN 371 - Type 1
Product features and benefits:
- First choice in quality and performance
- Powder metal spiral-fluted cutting tap for blind holes
- Multilayer TiCN coating
- High speed tapping in general steels, aluminium, stainless steels
| Thread Type | MF |
| Thread Diameter (TD) | 10mm |
| Pitch (TP) | 1mm |
| Functional Length (LF) | 90mm |
| Thread Length (THLGTH) | 12mm |
| Usable Length (LU) | 35mm |
| Shank Diameter (DCON) | 10mm |
| Drive Size (DRVS) | 8mm |
| Number of Flutes (NOF) | 3 |
| Pre-machined Hole Diameter (PHD) | 9mm |
| DIN | DIN 371 |
