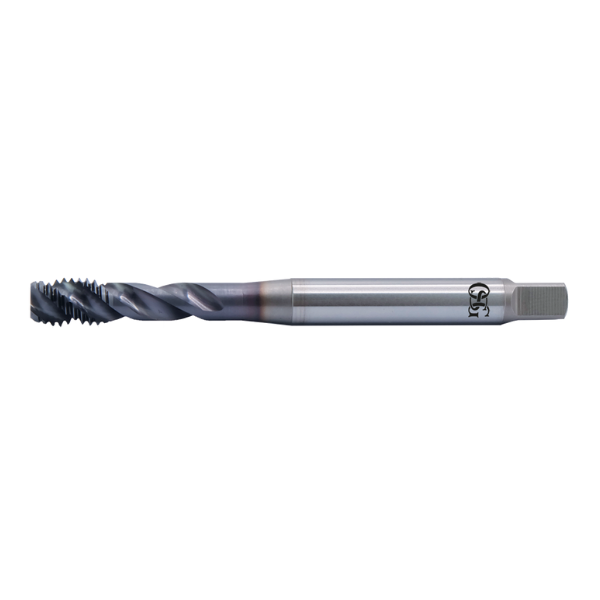

M16 x 1.5 A-SFT Metric Fine DIN 374 Spiral Flute HSS-PM Tap TiCN Coated For General Use - OSG
OSG-48139203
A-SFT - Metric Fine - DIN 374 - Type 2
Product features and benefits:
- First choice in quality and performance
- Powder metal spiral-fluted cutting tap for blind holes
- Multilayer TiCN coating
- High speed tapping in general steels, aluminium, stainless steels
| Thread Type | MF |
| Thread Diameter (TD) | 16mm |
| Pitch (TP) | 1.5mm |
| Functional Length (LF) | 100mm |
| Thread Length (THLGTH) | 16mm |
| Shank Diameter (DCON) | 12mm |
| Drive Size (DRVS) | 9mm |
| Number of Flutes (NOF) | 3 |
| Pre-machined Hole Diameter (PHD) | 14.5mm |
| DIN | DIN 374 |
