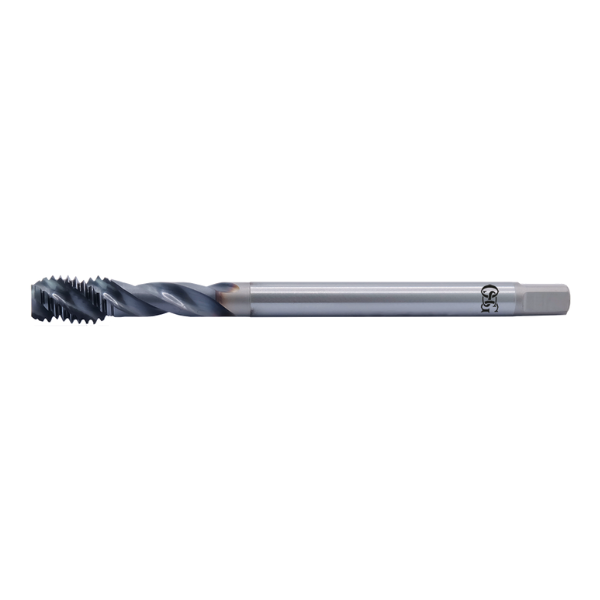

M11 x 1.5 A-SFT DIN 376 Spiral Flute HSS-PM Tap TiCN Coated For General Use - OSG
OSG-48139175
A-SFT - Metric - DIN 376 - Type 3
Product features and benefits:
- First choice in quality and performance
- Powder metal spiral-fluted cutting tap for blind holes
- Multilayer TiCN coating
- High speed tapping in general steels, aluminium, stainless steels
| Thread Type | M |
| Thread Diameter (TD) | 11mm |
| Pitch (TP) | 1.5mm |
| Functional Length (LF) | 100mm |
| Thread Length (THLGTH) | 12mm |
| Shank Diameter (DCON) | 8mm |
| Drive Size (DRVS) | 6.2mm |
| Number of Flutes (NOF) | 3 |
| Pre-machined Hole Diameter (PHD) | 9.5mm |
| DIN | DIN 376 |
