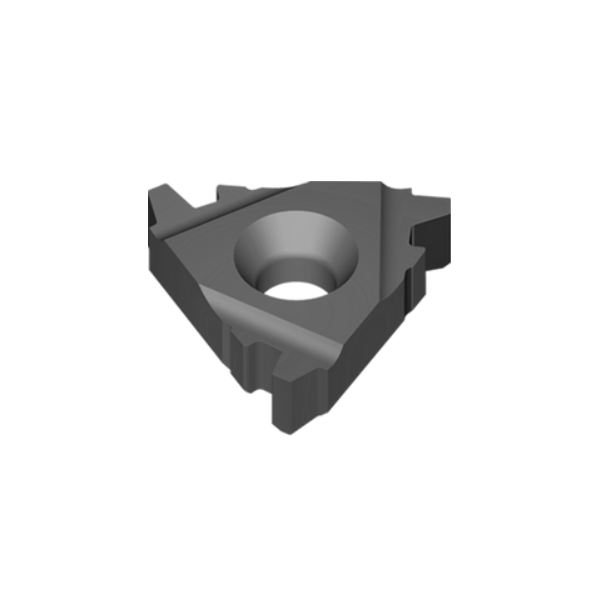

3ER8ACMEVTX External ACME RH Threading Insert VTX Grade - Vargus
021-53892
ACME - 3ER8ACMEVTX - 16ER8ACMEVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on more grades that are available.
*The price of this product is the price per insert (1x pack)*

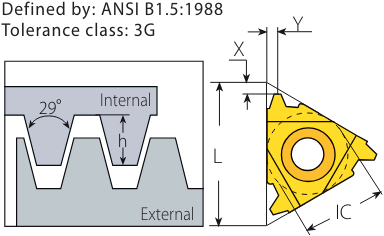

| IC | 3/8" (16ER) |
|
L |
16mm |
| Pitch (TPI) | 8 |
| h min | 1.84mm |
| X | 1.4mm |
| Y | 1.5mm |
| Tolerance | 3G |
| Anvil | YE3 |
| Toolholder | AL..-3 |
021-53892
