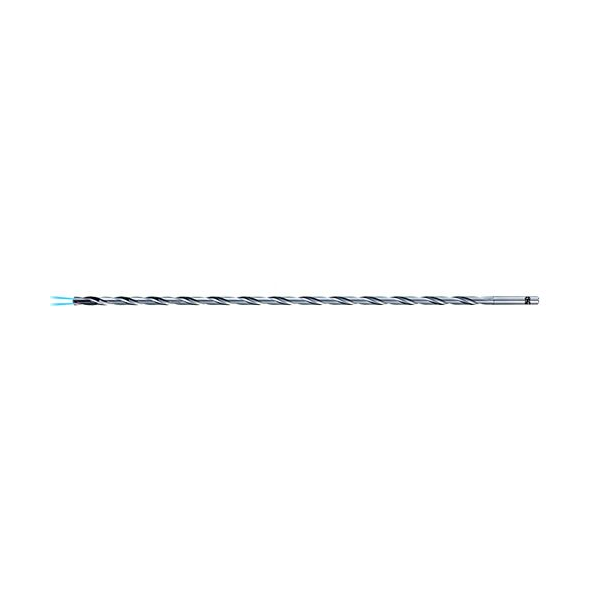

5mm 2 Flute Solid Carbide Through Coolant Drill 40xD EgiAs Coated For General Use - OSG
OSG-8717500
ADO-40D - 5mm
Product features and benefits:
- First choice in quality and performance
- Carbide drill with internal coolant, EgiAs coating
- Double margin, up to 40xD
- For general purpose steels and cast iron

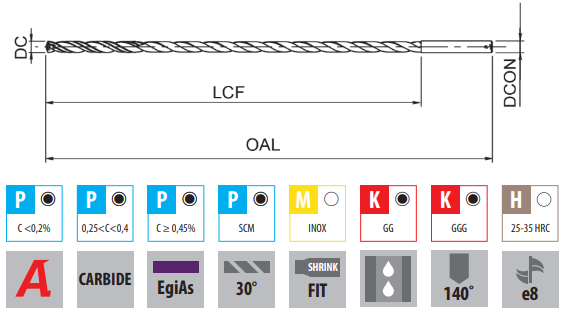

| Diameter (DC) | 5mm |
| Neck Length (LU) | 200mm |
| Drill Cutting Length (LCF) | 215mm |
|
Overall Length (OAL) |
265mm |
| Shank Diameter (DCON) | 5mm |
| Shank Length (LS) | 49mm |
| Point Length (PL) | 0.9mm |
| Point Angle | 140° |
| Number of Flutes (NOF) | 2 |
