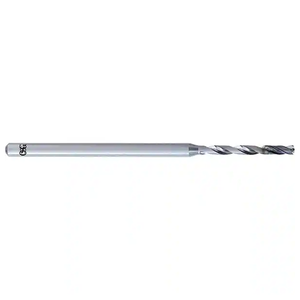

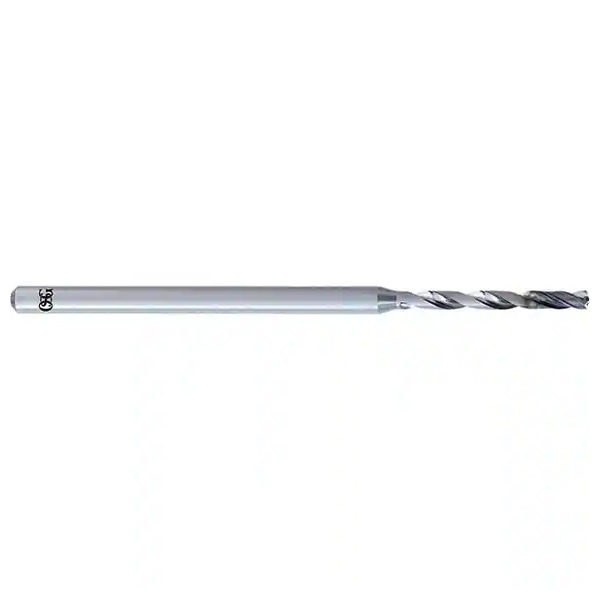

1.7mm Micro Drill 2 Flute Solid Carbide Through Coolant IchAda Coated 5xD - OSG
OSG-8732031
ADO-MICRO-5D - 1.7mm
The A Brand ADO-MICRO is ideal for applications in carbon steel, alloy steel, stainless steel, cast iron, ductile cast iron, aluminium alloy, titanium alloy and heat resistant alloy.
Product features and benefits:
- First Choice in quality and performance.
- Oil Holes Large flow volume enables superior chip evacuation.
- Double Margin (5xD) Supports straightness of drill direction.
- Through Coolant/IchAda Coating Provides excellent surface smoothness.
- Extended Flute Chips are discharged from the tip of the flute to the extended flute with enhanced evacuation capability.
- Removed End of Margin Capability to smoothly discharge “micro sludges” that can be easily accumulated around the outer periphery of the tool, which is a key cause of abrupt tool breakage.

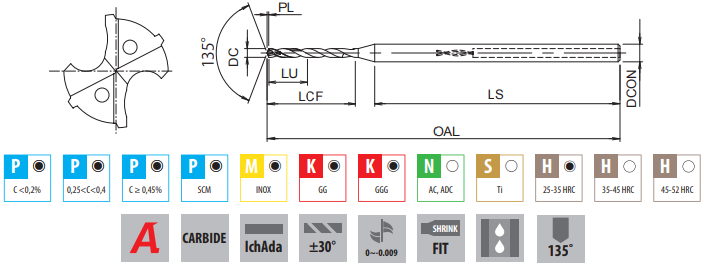

| Diameter (DC) | 1.7mm |
| Flute Length (LU) | 8.5mm |
| Neck Length (LCF) | 17mm |
| Overall Length (OAL) | 60mm |
| Shank Diameter (DCON) | 3.0mm |
| Shank Length (LS) | 40.1mm |
| PL | 0.4mm |
| Shank Tolerance | Shrink Fit |
