2ER56UNVM7 External American UN RH Threading Insert VM7 Grade - Vargus
021-00153
American UN - 2ER56UNVM7 - 11ER56UNVM7
VM7 Grade: Specialty grade for threading stainless steel. Multi-layer PVD coated.
Please contact us for more info on other grades that are available.
*The price of this product is the price per insert (1x pack)*

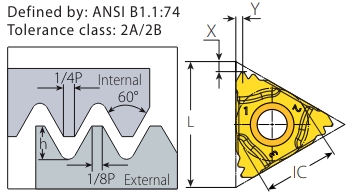

| IC | 1/4" (11ER) |
|
L |
11mm |
| Pitch (TPI) | 56 |
| h min | 0.28mm |
| X | 0.7mm |
| Y | 0.4mm |
| Tolerance | 2A |
| Anvil | - |
| Toolholder | NL..-2 |
021-00153
