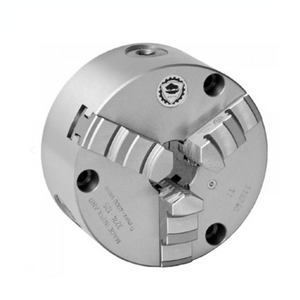

3-Jaw 400mm Lathe Chuck - Bison 3274-400
3274-400Bison 3 Jaw Lathe Chuck
Supplied with one set of hard inside-outside solid jaws, one set of hard outside solid jaws and one wrench.
Bison flexible front-mount scroll chucks feature mounting holes on the front face in addition to a recessed back for rear mounting. Front mount chucks are ideal for mounting directly onto to milling machine tables.
Features:
- Ground working surfaces ensure sustained accuracy and repeatability.
- Self-centring.
- Cast Iron body.
- Chucks with diameters 1000 mm and above are equipped with additional T-slots .
- Ideal for clamping 3-sided (triangular) or 6-sided (hexagonal) jobs.
- Supplied with outside/inside-outside jaws and wrench.
- Flexible mounting system: mounting from the back or front of the chuck by using an adapter plate.
- Separate Camlock or semi-finished adapter plates are available.
|
A
|
B
|
B1
|
C
|
D H7
|
E
|
F
|
G/P
|
J
|
L
|
kg
|
|
400
|
105.0
|
113.8
|
5
|
330
|
136.0
|
362
|
3xM16
|
55
|
67.0
|
85.0
|
