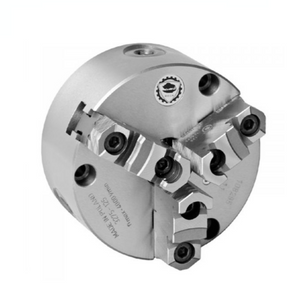

3-Jaw 400mm Lathe Chuck - Bison 3275-400
3275-400Bison 3 Jaw Lathe Chuck
Supplied with one set of hard top jaws, one set of hard master jaws and one wrench.
Bison scroll chucks are manufactured entirely within Bison Bial's factory in Poland, and are world renowned for offering superb quality and maximising tool life.
Features:
- Hardened and ground working surfaces prolong life while ensuring continuous accuracy and repeatability.
- Excellent Value.
- Self-centring.
- Cast Iron body.
- Ideal for clamping 3-sided (triangular) and 6-sided (hexagonal) jobs.
- Supplied with hard top jaws, hard master jaws and wrench.
- Balanced scroll plate allows higher rotation speeds without excess vibration.
- Flexible mounting system: mounting from the back or front of the chuck by using an adapter plate.
- Chucks with diameters 1000 mm and above are equipped with additional T-slots.
|
A
|
B
|
B1
|
C
|
D H7
|
E
|
F
|
G/P
|
J
|
L
|
kg
|
|
400
|
105.0
|
113.8
|
5
|
330
|
136.0
|
362
|
3xM16
|
55
|
67.0
|
85.0
|
