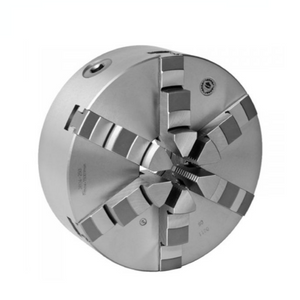

6-Jaw 200mm Lathe Chuck - Bison 3804-200
3804-200Bison 6 Jaw Lathe Chuck
Supplied with one set of hard outside-inside solid jaws, one set of hard outside solid jaws and one wrench.
Features:
- Hardened and ground working surfaces prolong life while ensuring continuous accuracy and repeatability.
- Excellent Value.
- Self-centring.
- Cast iron body.
- Ideal for clamping 3-sided (triangular), 6-sided (hexagonal), and cylindrical jobs.
- Reduced pressure per jaw means less damage to workpiece - perfect for delicate/thin walled jobs.
- Supplied with hard outside-inside solid jaws, hard outside solid jaws and wrench.
- Balanced scroll plate allows higher rotation speeds without excess vibration.
- Mounted on the machine tool spindle from the back of the chuck by using an adaptor plate.
|
A
|
B
|
B1
|
C
|
D H7
|
E
|
F
|
G
|
J
|
L
|
kg
|
|
200
|
75
|
79.8
|
4
|
160
|
55
|
176
|
6xM10
|
29
|
45
|
17.5
|
