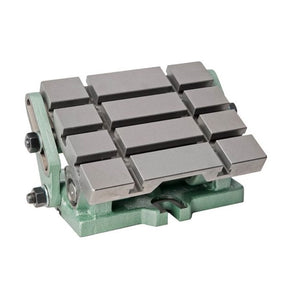

Bison Angle Plates 200x250(mm) - 5150 Series
5150-200x250Bison Angle Plates - 5150 Series
Easily set at any angle between horizontal and vertical plates (0-90 Deg in 5 Deg graduations).
The plate will accept accessories and workpieces larger than the table top.
| A | B |
C |
D |
E |
F |
F1 |
G |
| 200 | 250 |
324 |
236 |
12 |
50 |
126 |
18 |
| H | H1 |
J |
K |
Max. working weight |
kg |
| 111 |
201 |
22 |
18 |
60 |
21 |
