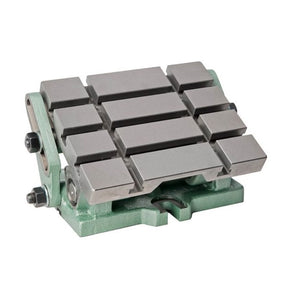

Bison Angle Plates 250x315(mm) - 5155 Series
5155-250x315Bison Angle Plates - 5155 Series
Easily set at any angle between horizontal and vertical plates (0-90 Deg in 5 Deg graduations). Additional adjustment between 0-60 Deg range by means of a gauge block.
The plate will accept accessories and workpieces larger than the table top.
| A | B |
C |
D |
E |
F |
G |
H |
| 250 |
315 |
160 |
14 |
18 |
63 |
25 |
127 |
| K | L |
M |
Max. working weight |
kg |
| 306 |
127 |
405 |
100 |
37 |
