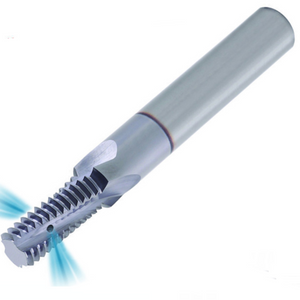

BSP 1/2"x14-2xDo - 14TPI Pitch BSPT Helical Flute Internal Carbide Thread Mill with Radial Coolant - (Helicool R HCR Series - Vardex)
106-00036
Thread Milling TM Solid Carbide HeliCool-Radial Cooling EX/IN 14TPI ISO Shank Diameter 18 (mm) Cutting Diameter 17.9 (mm) Tool Overhang 42.6 (mm) VTH Grade
- For Internal And External Machining
- For BSPT threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
- Radial Coolant For Through Holes
| Thread Standard | BSPT |
| Pitch | 14TPI |
| EXT/INT | EX/IN |
| Coolant | Yes |
| L | 42.6mm |
| L1 | 42.6mm |
| Le | 42.6mm |
| Cutting Dia | 17.9mm |
| Z | 4 |
| Zt | 23 |
| Grade | VTH |
| Coating | TiCN |
| Description | HCR18179L42-EI14BSPTMVTH |
| Shank Dia | 18mm |
106-00036 BSP 1/2"X14-2XDO - 14TPI PITCH BSPT HELICAL FLUTE INTERNAL CARBIDE THREAD MILL WITH RADIAL COOLANT - (HELICOOL R HCR SERIES - VARDEX)
