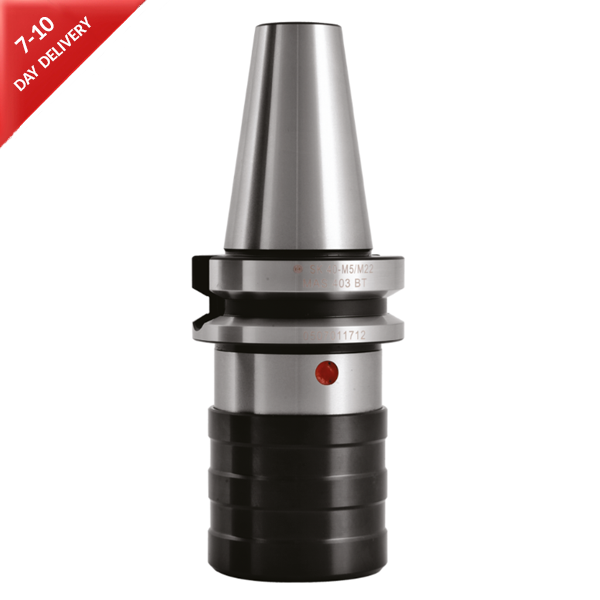

BT MAS 403 BT40 - 48mm (M14-M36) NC-Drill chuck for right and left rotation ER-Plus Dual Contact/Face & Taper - 136mm Gauge (A) - Eroglu
405.16.36.136.ERP
BT MAS 403 - BT40 - A - M14-M36 - 48mm - ER-PLUS - 136mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

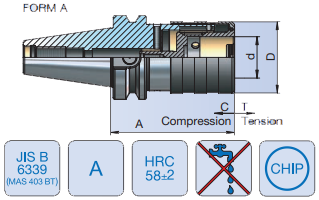

| Description | BT40 ERP |
| Form | A |
| Capacity | M14-M36 |
| d | 48mm |
| A (Gauge) | 136mm |
| D | 78mm |
| C | 20mm |
| T | 20mm |
