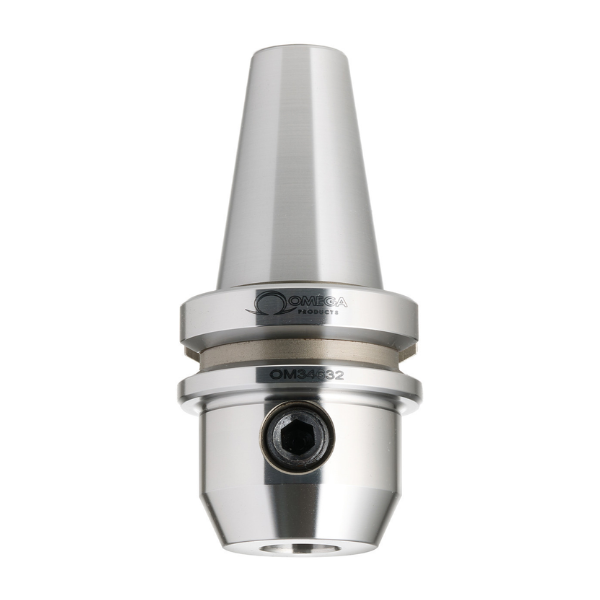

BT40 32mm End Mill Holder DCBT (Face & Taper/Dual Contact) - 100mm Gauge - Omega Products
BT40 32mm End Mill Holder DCBT (Face & Taper/Dual Contact) - 100mm Gauge - Omega Products
BT40 32mm End Mill Holder DCBT (Face & Taper/Dual Contact) - 100mm Gauge - Omega Products

BT40 32mm End Mill Holder DCBT (Face & Taper/Dual Contact) - 100mm Gauge - Omega Products

OM34637

Omega Products

DCBT40 - Face & Taper / Dual Contact

  • BT MAS403
  • Face & Taper Contact
  • Standard Nut Collet Chucks
  • Form AD
  • Balanced to G2.5 @ 25,000RPM
  • For mounting straight shank tools with weldon flat ER

DCBT Technical Specification:

  • DCBT Face & Taper Contact Tool Holders would maintain greater rigidity than standard BT Tool Holders
  • Achieves Higher ‘Radial Rigidity’
  • Manufactured with case hardened steel, core tensile strength min. 950 N/mm2
  • Tolerance AT3

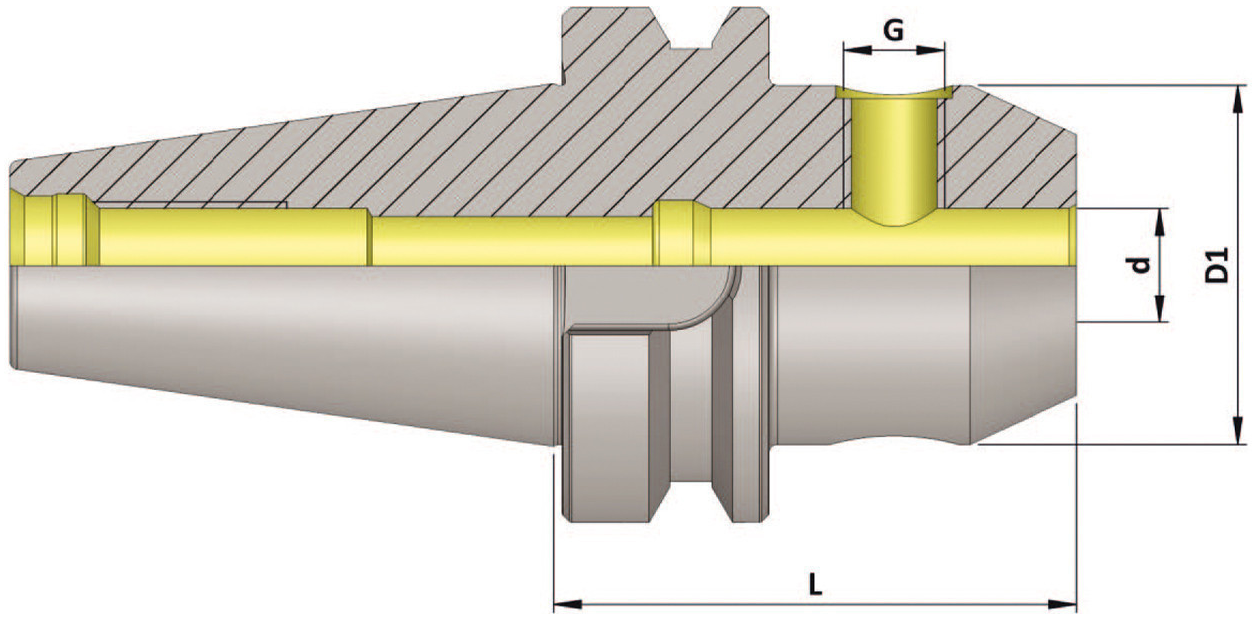

  • (See images for drawing)
Description DCBT40 S/L 32
d 32mm
D1 72mm
G M20x2
L 100mm
