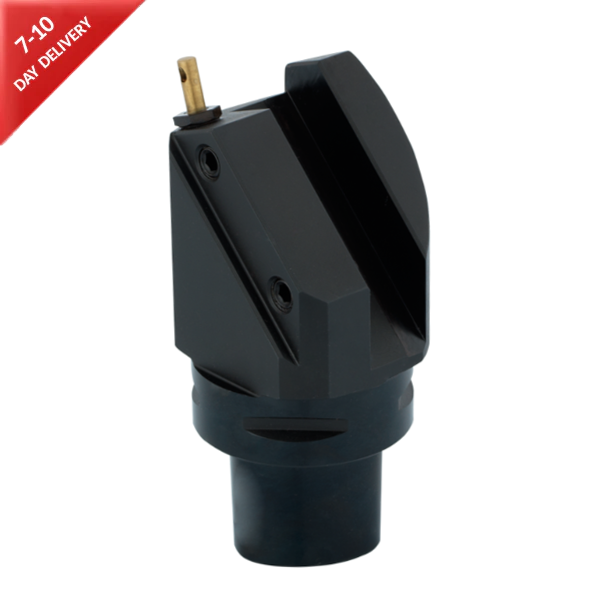

Capto EPS 80 - 32mm 45° Toolholder EPS Left Hand (ISO 26623-1) - 135mm Gauge - Eroglu
EP8.45.32.135.L
EPS (ISO 26623-1) - Capto EPS 80 - 32mm - 135mm Gauge - LH
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

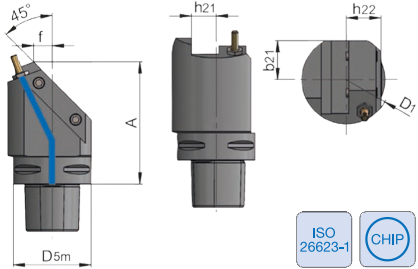

| Description | Capto EPS (ISO 26623-1) |
| EPS | EPS 80 |
| h21 | 32mm |
| A (Gauge) | 135mm |
| D1 | 140mm |
| D5m | 80mm |
| b21 | 45mm |
| h21 | 40mm |
| f | 17mm |
EP8.45.32.135.L
CAPTO EPS 80 - 32MM 45° TOOLHOLDER EPS LEFT HAND (ISO 26623-1) - 135MM GAUGE - EROGLU
