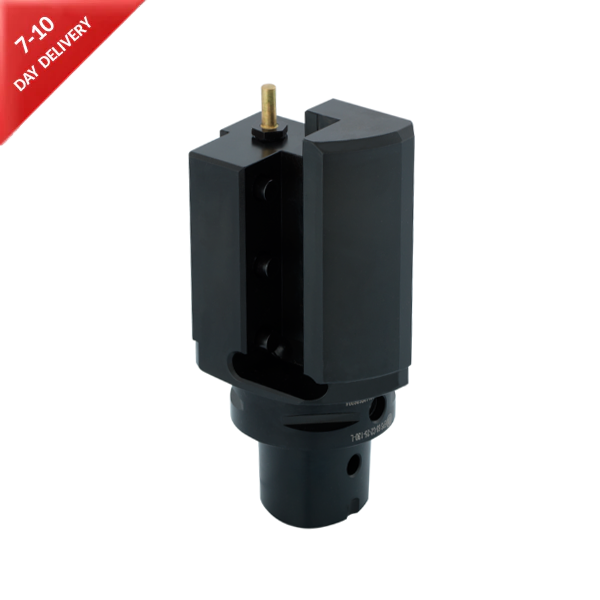

Capto EPS 63 - 25mm Axial Toolholder Left Hand EPS (ISO 26623-1) - 130mm Gauge - Eroglu
EP6.42.25.130.L
EPS (ISO 26623-1) - Capto EPS 63 - 25mm - 130mm Gauge - LH
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

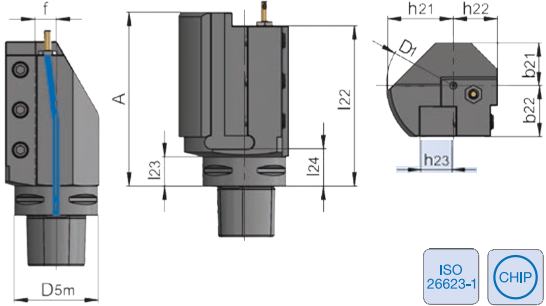

| Description | Capto EPS (ISO 26623-1) |
| EPS | EPS 63 |
| h23 | 25mm |
| A (Gauge) | 130mm |
| D1 | 100mm |
| D5m | 63mm |
| b21 | 32mm |
| b22 | 38mm |
| h21 | 50mm |
| h22 | 33mm |
| f | 16mm |
| l22 | 120mm |
| l23 | 22mm |
| l24 | 28mm |
EP6.42.25.130.L
CAPTO EPS 63 - 25MM AXIAL TOOLHOLDER LEFT HAND EPS (ISO 26623-1) - 130MM GAUGE - EROGLU
