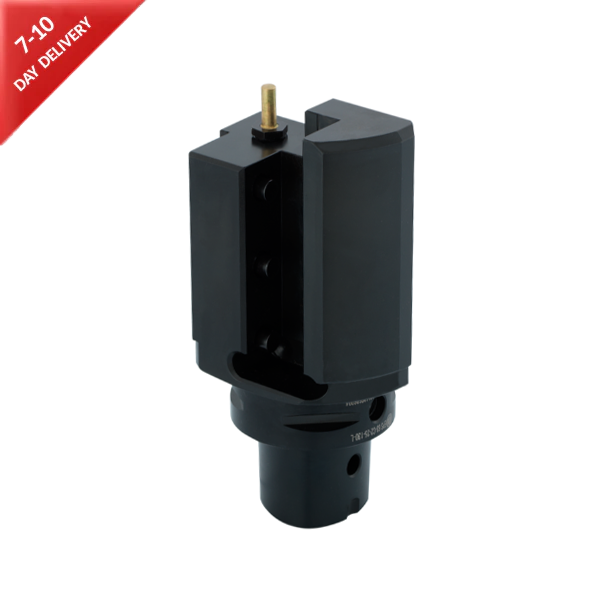

Capto EPS 80 - 32mm Axial Toolholder Left Hand EPS (ISO 26623-1) - 140mm Gauge - Eroglu
EP8.42.32.140.L
EPS (ISO 26623-1) - Capto EPS 80 - 32mm - 140mm Gauge - LH
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

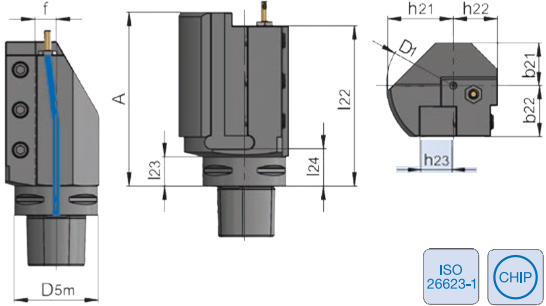

| Description | Capto EPS (ISO 26623-1) |
| EPS | EPS 80 |
| h23 | 32mm |
| A (Gauge) | 140mm |
| D1 | 110mm |
| D5m | 80mm |
| b21 | 40mm |
| b22 | 40mm |
| h21 | 55mm |
| h22 | 30mm |
| f | 15mm |
| l22 | 130mm |
| l23 | 30mm |
| l24 | 35mm |
