Capto EPS 50 - 16mm Hydraulic Expansion Chuck EPS (ISO 26623-1) - 85mm Gauge - Eroglu
EP5.65.16.85
EPS (ISO 26623-1) - Capto EPS 50 - 16mm - 85mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

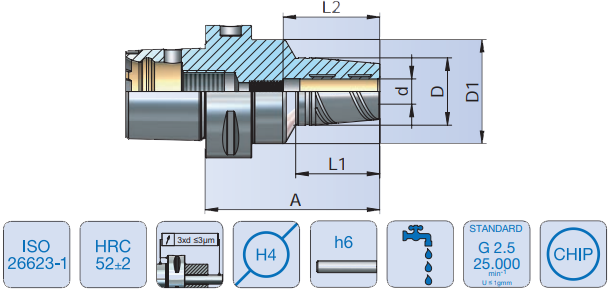

| Description | Capto EPS (ISO 26623-1) |
| EPS | EPS 50 |
| d | 16mm |
| A (Gauge) | 85mm |
| D | 50mm |
| D1 | 38mm |
| L1 | 46mm |
| L2 | 49mm |
