HZ 1006-60 H7 333TN 6mm Cutting Width HSS Broaching Inserts Single-sided For PHZ...-10 Holders (2x Inserts) - Dormer Pramet
HZ 1006-60 H7 333TN

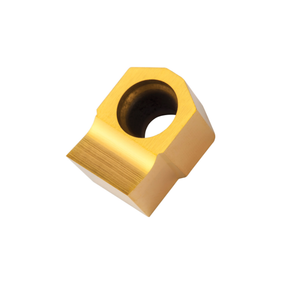

Dormer Pramet HSS Broaching Inserts Single-Sided.
Single ended keyway and slotting insert for broaching a width of 6mm within tolerance class H7, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ…-10 size broach.
This price is for a Pack of 2 inserts.
| Insert Style |
HZ |
| Insert Size |
1006-60 H7 |
| Grade |
333TN |
| Diameter (IC) |
10.0mm |
| Insert Height (INSL) | 13.5mm |
| Depth of Cut (APMX) | 4.2mm |
| Cutting Length (S) | 6.25mm |
| Insert Thickness (S1) | 6.35mm |
| Cutting Diameter (CW) | 6.0mm |
| Cutting Edge Material | HSS |
