16ER 14NPT External Threading Insert - Grade: PTX - Posithread
16ER14NPT-PTX (C)16ER 14NPT
ASME/ANSI B1.20.1 60° Inclusive 1/16 Taper
GRADE: PTX
| Description | 16ER 14NPT |
| TPI | 14 |
| R MAX | 0.094 |
| X | 1.30 |
| Y | 1.50 |
| I.C | 9.525 |
| L | 16.00 |
| T | 3.50 |

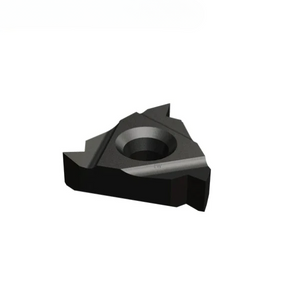

IMAGE USED IS A GENERIC IMAGE
16ER14NPT-PTX (C) 16ER 14NPT EXTERNAL THREADING INSERT - GRADE: PTX - POSITHREAD
