16NR 10API RD Internal Threading Inserts (Pack of 9) - Grade: PTC2 - Posithread
16NR10API-PTC2 P9 (C)16NR 10API RD
API SPEC 5-B 60° Inclusive
GRADE: PTC2
| Description | 16NR 10API RD |
| TPI | 10 |
| R1 | 0.356 (0.014") |
| R2 | 0.432 (0.017") |
| X | 1.30 |
| Y | 1.50 |
| I.C | 9.525 |
| L | 16.00 |
| T | 3.50 |

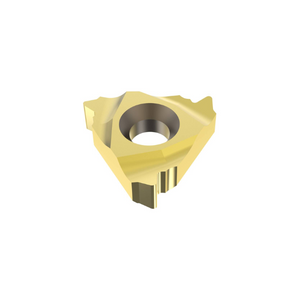

IMAGE USED IS A GENERIC IMAGE
16NR10API-PTC2 P9 (C) 16NR 10API RD INTERNAL THREADING INSERTS (PACK OF 9) - GRADE: PTC2 - POSITHREAD
