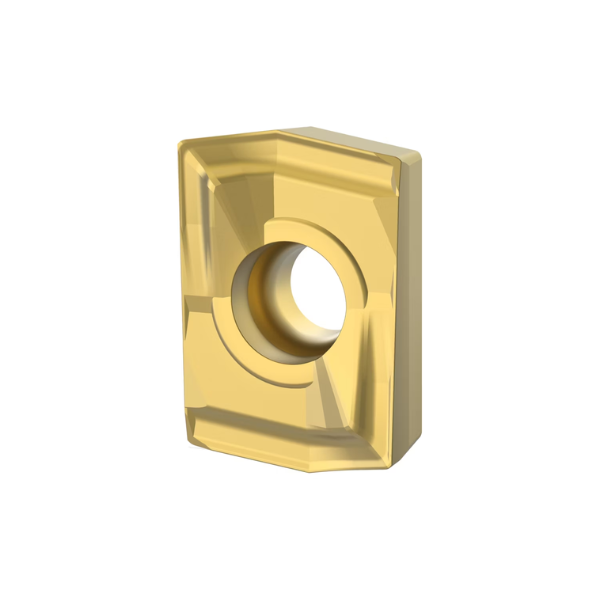

DFR030204GD Carbide Drill Fix GD Inserts - KCU25 Grade (Pack of 10) - Kennametal

5067312 (C)

KENNAMETAL

  • £40.00


Drill Fix™ DFR™ • GD Inserts

KCU25

Composition: An advanced PVD grade with hard AlTiN coating and fine-grain unalloyed substrate. The new and improved coating improves edge stability with wide range speed and feed capabilities.
Application: The KCU25™ grade is ideal for general machining of most steels, stainless steels, high-temp alloys, titanium, irons, and non-ferrous materials in a wide range of speeds and feeds with improved edge toughness for interrupted cuts and high feed rates.

Features and benefits:

  • General purpose chipbreaker geometry preferred for use on ductile and normal chipping materials
  • Preferred on outboard position

Material Number 5653930
ISO Catalogue ID XDLT120508ERD41
Grade X500

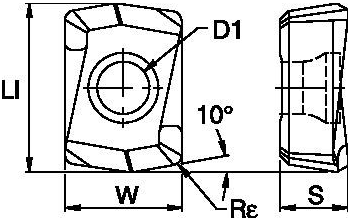

Insert Length (LI) 8.71mm
Insert Width (W) 6mm
Insert Hole Size (D1) 2.5mm
Insert Thickness (S) 2.88mm
Corner Radius (Re) 0.4mm

5067312 (C) DFR030204GD CARBIDE DRILL FIX GD INSERTS - KCU25 GRADE (PACK OF 10) - KENNAMETAL
