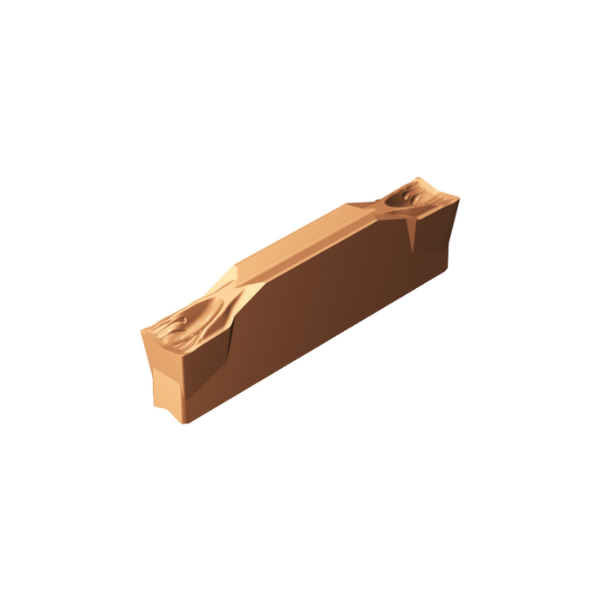

N123H2-0400-0001-CF CoroCut® 1-2 Parting Inserts (Pack of 13) - Grade: 1125 - Sandvik Coromant
12290305 (C)N123H2-0400-0001-CF 1125

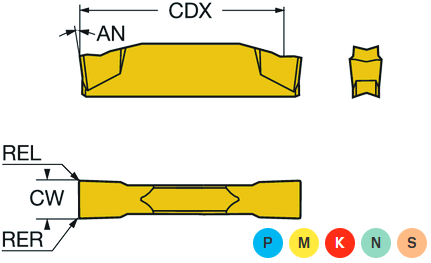

| Cutting width (CW) | 4mm |
| Cutting depth maximum (CDX) | 23.3mm |
| Corner radius left & right (REL/RER) | 0.15mm |
| Insert gauge length (LIG) | 24.72mm |
| Clearance angle major (AN) | 7° |
| Insert Thickness (S) | 4.35mm |
12290305 (C) N123H2-0400-0001-CF COROCUT® 1-2 PARTING INSERTS (PACK OF 13) - GRADE: 1125 - SANDVIK COROMANT
