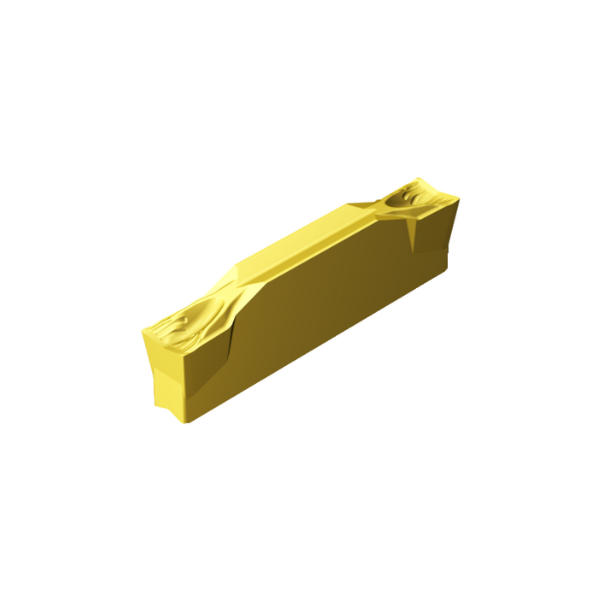

N123H2-0400-0001-CF CoroCut® 1-2 Parting Inserts (Pack of 20) - Grade: 2135 - Sandvik Coromant
11093950 (C)N123H2-0400-0001-CF 2135

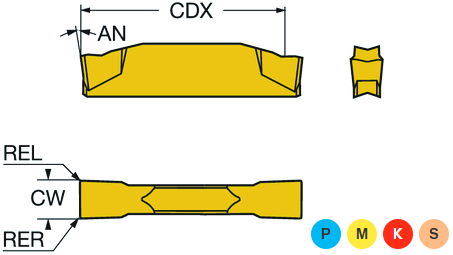

| Cutting width (CW) | 4mm |
| Cutting depth maximum (CDX) | 23.3mm |
| Corner radius left & right (REL/RER) | 0.15mm |
| Insert gauge length (LIG) | 24.58mm |
| Clearance angle major (AN) | 7° |
| Insert Thickness (S) | 4.35mm |
11093950 (C) N123H2-0400-0001-CF COROCUT® 1-2 PARTING INSERTS (PACK OF 20) - GRADE: 2135 - SANDVIK COROMANT
