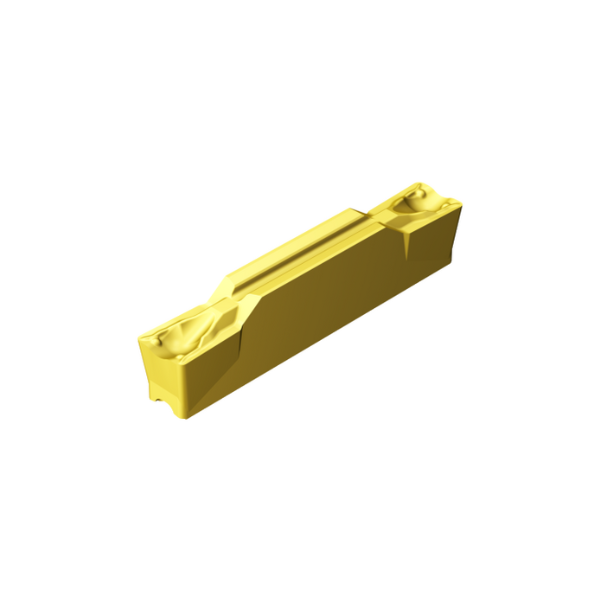

N123K2-0600-0004-TF CoroCut® 1-2 Parting Inserts (Pack of 10) - Grade: 2135 - Sandvik Coromant
11094112 (C)N123K2-0600-0004-TF 2135

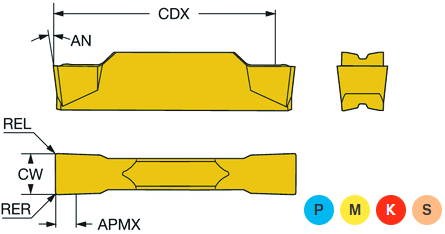

| Cutting width (CW) | 6mm |
| Cutting depth maximum (CDX) | 23.3mm |
| Corner radius left & right (REL/RER) | 0.4mm |
| Insert gauge length (LIG) | 24.68mm |
| Clearance angle major (AN) | 7° |
| Insert Thickness (S) | 4.35mm |
| Depth of cut maximum (APMX) | 3.4mm |
