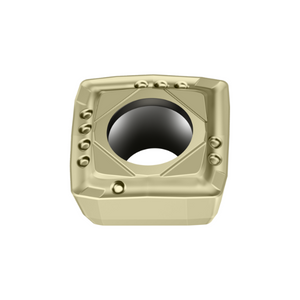

P4841C-7R-E57 Carbide Inserts - WXP45 Grade (Pack of 10) - Walter
5585862 (C)P4841C-7R-E57
GRADE: WXP45
The tool
- Specially developed to meet the requirements of a centre insert – fully sintered circumference for a high level of cost-efficiency
- E 57 – The universal one, with 13° rake angle
- For average machining conditions for cast iron and steel as well as stainless and difficult-to-cut materials
- Square, positive indexable insert with four cutting edges
- Ideal for drilling into solid material with the D4120 indexable insert drill
- Special design of centre and outer inserts to compensate for the cutting forces
- Indents in the rake face signify the number of the cutting edge
Potential benefits
- Increase in productivity through higher cutting data
- Adherence to minimal hole tolerances due to the optimum balance of forces
- Reduced costs thanks to four cutting edges
- High level of process reliability due to force-fit indexable insert clamping
The Application
- For drilling from solid, spot drilling on inclined or convex surfaces, chain drilling
- Ideal for general mechanical engineering, and the automotive, mass production and aerospace industries
