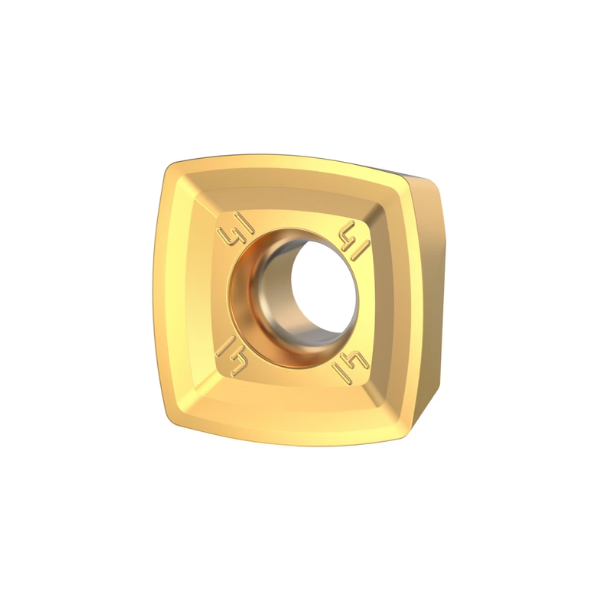

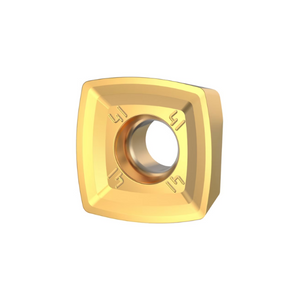

XDLT120508ER-D41 Carbide High-Feed Copy Milling Inserts - X500 Grade (Pack of 10) - Kennametal
5653930 (C)
High-feed copy milling inserts with four cutting edges, precision ground - 7792VXD12 Series
X500
CVD TiN/TiCN/TiN coated carbide on tough substrate (X-Grade™ technology). For difficult applications with heavy impacts, vibrations, or unstable conditions. High stability against thermal cracks. Excellent grade for high-temperature alloys, stainless steels, and titanium.
Features and benefits:
- Pressed-to-size, for lowest cost per cutting edge
- Single-sided copy milling insert for machining of steels, stainless steel and high-temperature alloys
| Material Number | 5653930 |
| ISO Catalogue ID | XDLT120508ERD41 |
| Grade | X500 |

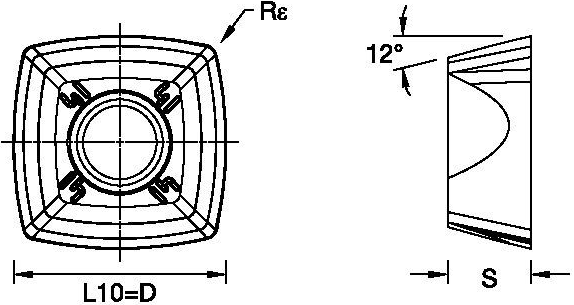

| Insert IC Size (D) | 12.7mm |
| Insert Length (LI) | 12.7mm |
| Insert Thickness (S) | 5.56mm |
| Corner Radius (Re) | 0.8mm |
| Average Chip Thickness (HM) | 0.05mm |
| Theoretical Corner Radius Programming (RT) | 2.5mm |
