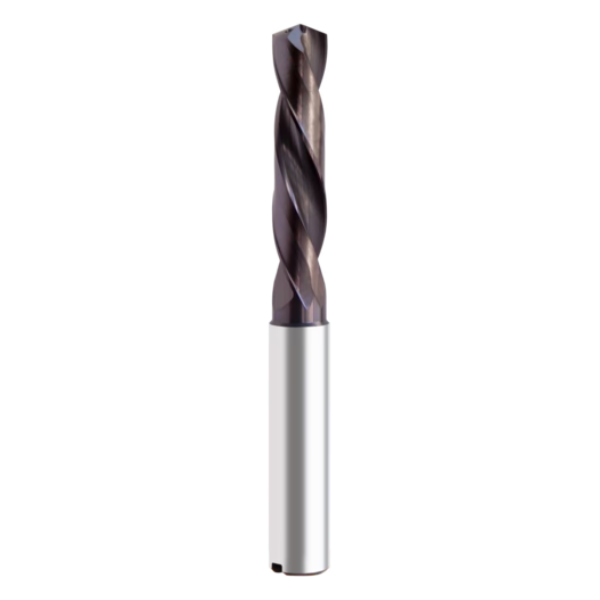

9.0mm Through Coolant Solid Carbide 7xD Drill Sumitomo - Clearance
DC-43 (C)

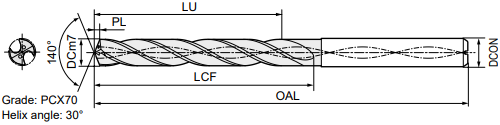

| Diameter (DC) | 9.0mm |
| Shank Dia (DCON) | 10.0mm |
| Flute (LU) | 75.1mm |
| Max drill depth (LCF) | 88.6mm |
| OAL | 130.6mm |
| PL | 1.6mm |
