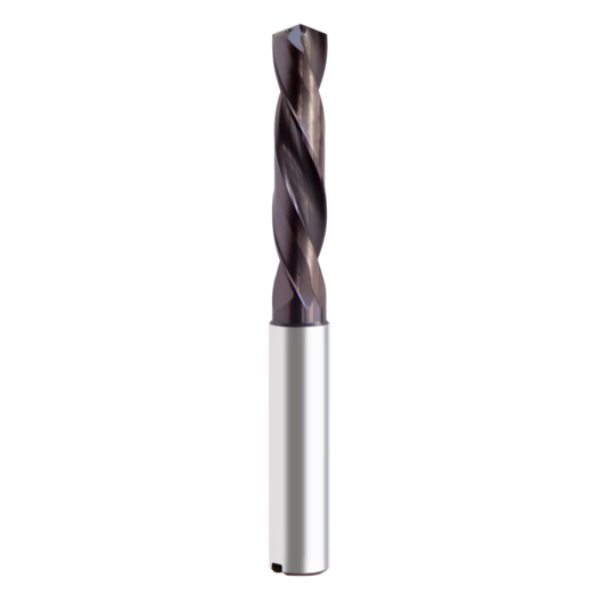

9.5mm Through Coolant Solid Carbide 3xD Drill Sumitomo - Clearance
DC-46 (C)

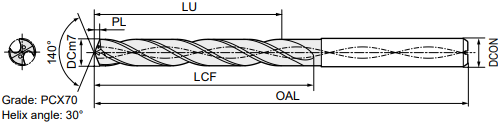

| Diameter (DC) | 9.5mm |
| Shank Dia (DCON) | 10.0mm |
| Flute (LU) | 32.5mm |
| Max drill depth (LCF) | 46.7mm |
| OAL | 88.7mm |
| PL | 1.7mm |
| Diameter (DC) | 9.5mm |
| Shank Dia (DCON) | 10.0mm |
| Flute (LU) | 32.5mm |
| Max drill depth (LCF) | 46.7mm |
| OAL | 88.7mm |
| PL | 1.7mm |
