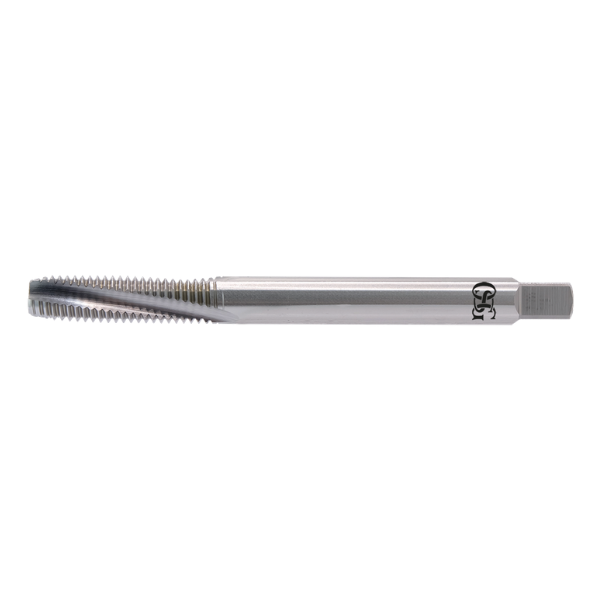

EG-MJ 10 x 1.5 E-HL-SFT Helicoil Thread Cutting Tap Spiral Flute For Thread Repair/Wire Insert (STI) - OSG
48007169
E-HL-SFT
Product features and benefits:
- Powder metal spiral-fluted cutting tap for blind holes
- Bright finish
- For Nickel-based alloys including Inconel 718
- For thread repair/wire insert (STI)

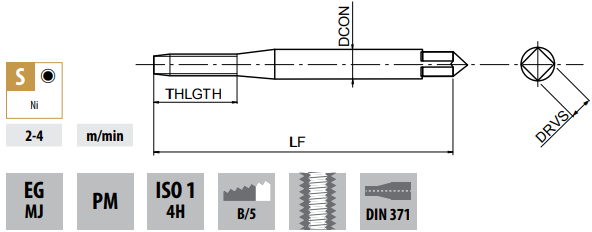

| Thread Type | EG-MJ |
| Thread Diameter (TD) | 10.0mm |
| Pitch (TP) | 1.50mm |
| Cutting Diameter (EG) | 11.949mm |
|
Functional Length (LF) |
110.0mm |
| Thread Length (THLGTH) | 41.0mm |
| Shank Diameter (DCON) | 12.0mm |
| Drive Size (DRVS) | 9.00mm |
| Number of Flutes (NOF) | 3 |
| Pre-machined Hole Diameter (PHD) | 10.4mm |
| DIN | DIN 371 |
48007169 EG-MJ 10 X 1.5 E-HL-SFT HELICOIL THREAD CUTTING TAP SPIRAL FLUTE FOR THREAD REPAIR/WIRE INSERT (STI) - OSG
