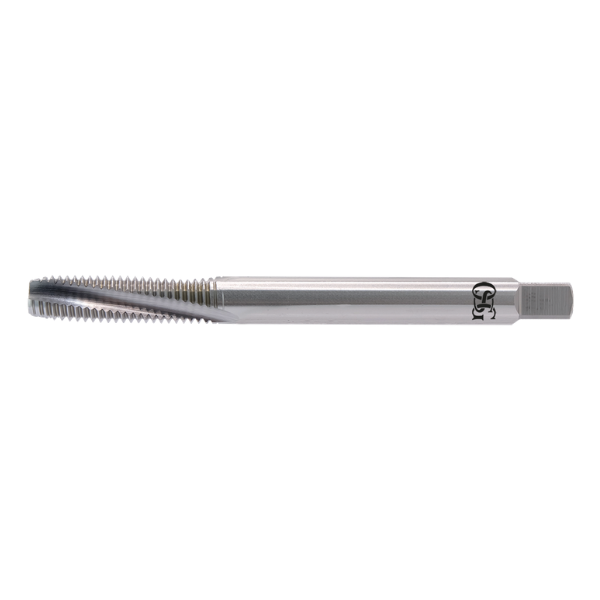

EG-UNJC 4x40 E-HL-SFT Helicoil Thread Cutting Tap Spiral Flute For Thread Repair/Wire Insert (STI) - OSG
48015457
E-HL-SFT
Product features and benefits:
- Powder metal spiral-flute cutting tap for blind holes
- Bright finish
- For Nickel-based alloys including Inconel 718
- For thread repair/wire insert (STI)

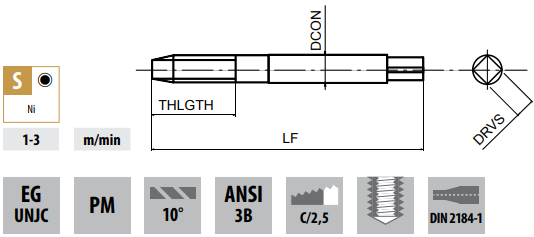

| Thread Type | EG-UNJC |
| Thread Diameter (TD) | 4 |
| Pitch (TP) | 40 |
| Cutting Diameter (EG) | 3.67mm |
|
Functional Length (LF) |
56.0mm |
| Thread Length (THLGTH) | 13.0mm |
| Shank Diameter (DCON) | 4.00mm |
| Drive Size (DRVS) | 3.00mm |
| Number of Flutes (NOF) | 3 |
| Pre-machined Hole Diameter (PHD) | 3.00mm |
| DIN | DIN 2184-1 |
48015457 EG-UNJC 4X40 E-HL-SFT HELICOIL THREAD CUTTING TAP SPIRAL FLUTE FOR THREAD REPAIR/WIRE INSERT (STI) - OSG
