E559NO6 - M10x1.0 Dormer HSS Straight Flute Hand Tap Set Metric Fine
E559M10X1.0NO6
E559NO6 (MF)

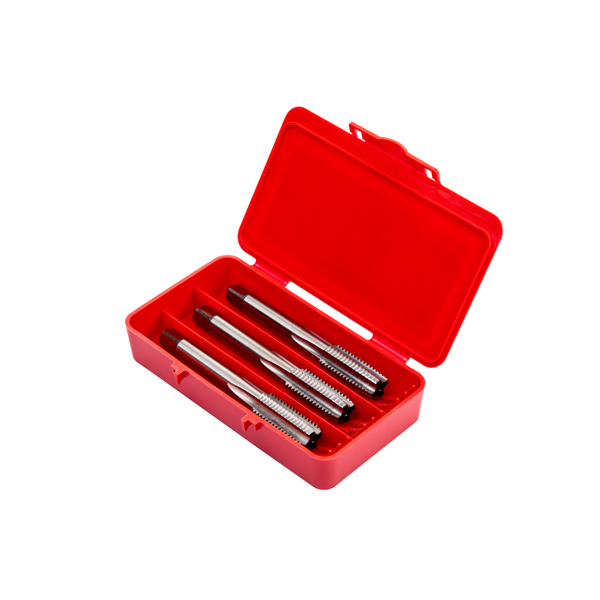

The most versatile taps for hand use or machine tapping through or blind holes in medium strength, medium carbon and alloy steel. Set including taps with 3 different chamfer lengths; taper lead which is ideally for short through holes, plug perfect for deeper through holes and bottoming best suited for blind holes.

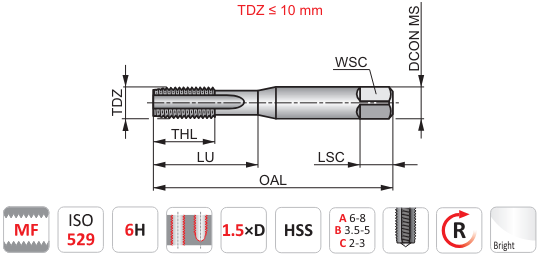

| Thread Diameter Size (TDZ) | M10 |
| Thread Pitch (TP) | 1.0mm |
| Overall Length (OAL) | 76.0mm |
| Thread Diameter (TD) | 10.0mm |
| Threading Length (THL) | 20mm |
| Connection Diameter (DCON MS) | 10.0mm |
| Clamping Width (WSC) | 8.0mm |
| Clamping Length (LSC) | 11mm |
| Flute Count (NOF) | 4 |
| Pre-machined Hole Diameter (PHD) | 9.0mm |
| Usable Length (LU) | 35.0mm |
