M 2.5 x 0.45 - Emuge 6HX Tolerance HSSE Serial Hand Tap Set - For Hard Materials
H0433001.0025
M 2.5 x 0.45 - WM - HSSE - (Nr.1,Nr.2,F)
HSSE set of taps (3 parts) for universal applications in stainless steel materials and Nickel alloys. Our preferred method for tapping hard materials and difficult applications.
Graduated in diameter so that the first tap used, recognised by one groove on the shank, is smaller than the second which has two grooves. The required thread diameter is achieved by the finishing tap, no grooves.
Product features and benefits:
-
For manual tapping, but can also be used with a machine.
- With pre-cutter, second tap and finishing cutter.
- DIN 352
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

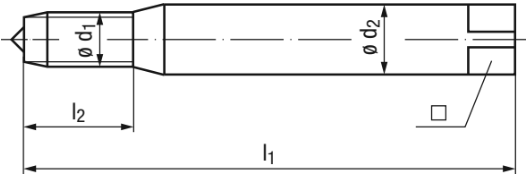

| Thread | M |
| Nominal Diameter (d1) |
2.5mm |
| Pitch | 0.45mm |
| Geometry | WM |
| Shank Diameter (d2) | 2.8mm |
| OAL (l1) | 40mm |
| Length of cutting edge (l2) | 9mm |
| Square ■ | 2.1mm |
| Tap hole diameter | 2.05mm |
H0433001.0025 M 2.5 X 0.45 - EMUGE 6HX TOLERANCE HSSE SERIAL HAND TAP SET - FOR HARD MATERIALS
