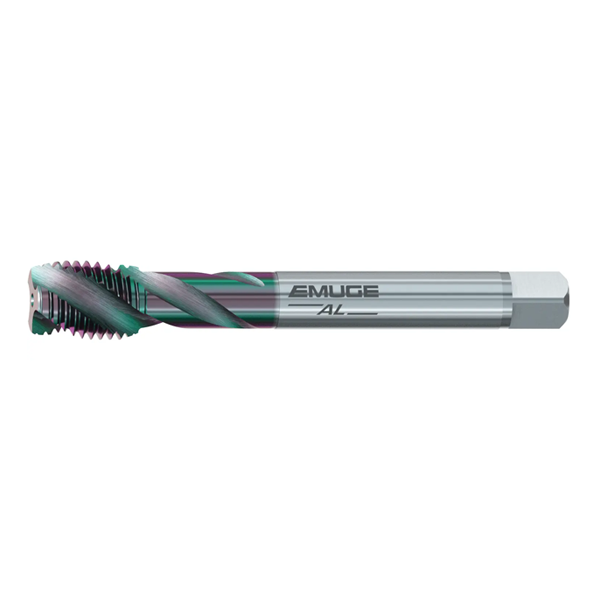

M 16 x 2.0 - Emuge Spiral Flute 6H Tolerance AL Tap GLT-104 Coated

C0503G00.0116

Emuge

  • £122.65


M 16 x 2.0 - SF - AL - GLT-104

HSSE tap for applications in wrought aluminium and copper materials.

GLT-104 coating - Special coating for even higher surface quality with reduced material adhesion, specially designed for machining aluminium and non-ferrous metals.

Product features and benefits:

  • Tap for blind hole threads in long-chipping material.
  • DIN 376
  • Chamfer Form C (Semi-Bottoming)
  • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

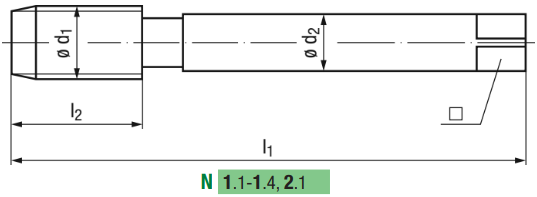

Thread M
Nominal Diameter (d1)
16mm
Pitch 2mm
Coolant Supply Without
Geometry AL
Shank Diameter (d2) 12mm
OAL (l1) 110mm
Length of cutting edge (l2) 22mm
Square ■ 9mm
Tap hole diameter 14mm

C0503G00.0116 M 16 X 2.0 - EMUGE SPIRAL FLUTE 6H TOLERANCE AL TAP GLT-104 COATED
