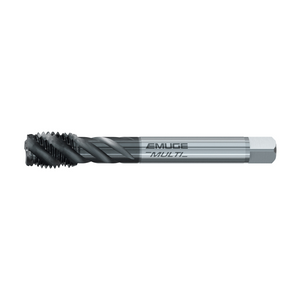

M24 x 3.0 Emuge Spiral Flute Multi Tap GLT-1 Coated (High Performance)

M24 x 3.0 Emuge Spiral Flute Multi Tap GLT-1 Coated (High Performance)

C550C400.0124

Emuge

  • £154.03


M24-SF-MULTI-GLT

HSSE tap for universal application in almost all workpiece materials.

GLT-1 coating - Hard surface coating with anti-friction layer. In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized. The combination of a hard surface coating (approx. 3,000 HV) with an anti-friction layer provides maximum tool life. Chip flow is also improved.

Product features and benefits:

  • Tap for blind hole threads in long-chipping material.
  • Not to be recommended for threads beginning with an increased diameter.
  • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

Thread M
Diameter (d1) 24mm
Pitch 3mm
Coolant Supply Without
Geometry MULTI
Shank Diameter (d2) 18mm
OAL (l1) 160mm
Length of cutting edge (l2) 30mm
Square  14.5mm
Tap hole diameter 21mm
C550C400.0124
