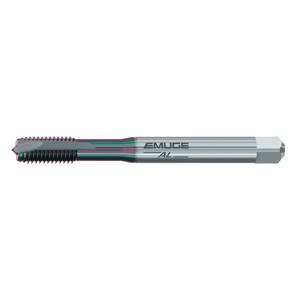

M 1.6 x 0.35 - Emuge Spiral Point 6H Tolerance AL Tap GLT-104 Coated

B0203G00.0016

Emuge

  • £63.62


M 1.6 x 0.35 - SP - AL - GLT-104

HSSE tap for applications in wrought aluminium and copper materials.

GLT-104 coating - Special coating for even higher surface quality with reduced material adhesion, specially designed for machining aluminium and non-ferrous metals.

Product features and benefits:

  • The spiral point geometry ensures optimum chip removal in the feed direction.
  • DIN 371
  • Chamfer Form B (Plug)
  • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

Thread M
Nominal Diameter (d1)
1.6mm
Pitch 0.35mm
Coolant Supply Without
Geometry AL
Shank Diameter (d2) 2.5mm
OAL (l1) 40mm
Length of cutting edge (l2) 6mm
Usable Length (l3) 11mm
Square ■ 2.1mm
Tap hole diameter 1.25mm

B0203G00.0016 M 1.6 X 0.35 - EMUGE SPIRAL POINT 6H TOLERANCE AL TAP GLT-104 COATED
