No. 4 UNC - Emuge Spiral Flute Multi Tap GLT Coated - Precision Engineering Tools EW Equipment Emuge,

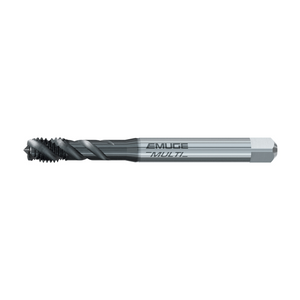

No. 4 UNC - Emuge Spiral Flute Multi Tap GLT Coated

B550C400.5003

Emuge

  • £32.19


#4-UNC-SF-MULTI-GLT

HSSE tap for universal application in almost all workpiece materials.

GLT-1 coating - Hard surface coating with anti-friction layer. In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized. The combination of a hard surface coating (approx. 3,000 HV) with an anti-friction layer provides maximum tool life. Chip flow is also improved.

Product features and benefits:

  • Tap for blind hole threads in long-chipping material.
  • Not to be recommended for threads beginning with an increased diameter.
  • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

Thread UNC
Nominal Size
#4
Threads Per Inch (TPI) 40
Coolant Supply Without
Geometry MULTI
Shank Diameter (d2) 3.5mm
OAL (l1) 56mm
Length of cutting edge (l2) 6mm
Usable Length (l3) 18mm
Square ■ 2.7mm
Tap hole diameter 2.35mm
B550C400.5003 NO. 4 UNC - EMUGE SPIRAL FLUTE MULTI TAP GLT COATED
