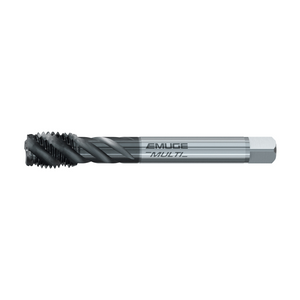

7/16 UNF - Emuge Spiral Flute Multi Tap GLT Coated

7/16 UNF - Emuge Spiral Flute Multi Tap GLT Coated

C550C400.5046

Emuge

  • £65.49


7/16-UNF-SF-MULTI-GLT

HSSE tap for universal application in almost all workpiece materials.

GLT-1 coating - Hard surface coating with anti-friction layer. In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized. The combination of a hard surface coating (approx. 3,000 HV) with an anti-friction layer provides maximum tool life. Chip flow is also improved.

Product features and benefits:

  • Tap for blind hole threads in long-chipping material.
  • Not to be recommended for threads beginning with an increased diameter.
  • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

Thread UNF
Nominal Size
7/16
Threads Per Inch (TPI) 20
Coolant Supply Without
Geometry MULTI
Shank Diameter (d2) 8mm
OAL (l1) 100mm
Length of cutting edge (l2) 13mm
Square  6.2mm
Tap hole diameter 9.9mm
C550C400.5046
