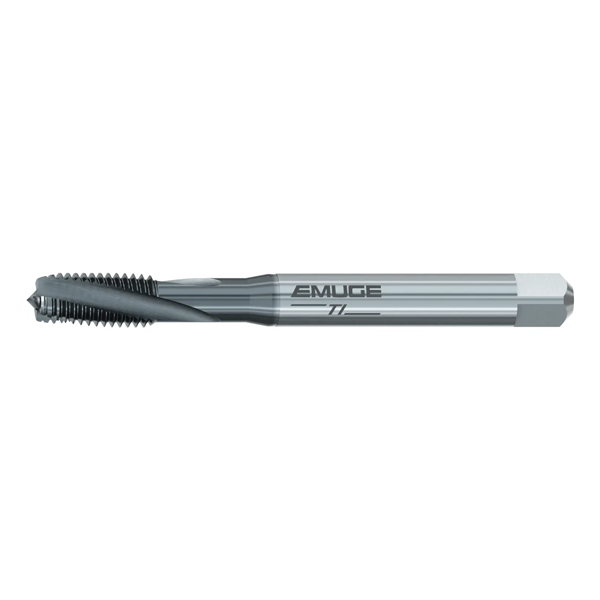

3/8 - 16 UNJC - Emuge Spiral Flute 3BX Tolerance TI Tap TICN Coated
B0459611.5487
3/8-16 UNJC - SF - TI - TICN
HSSE taps for applications in titanium.
TICN coating
Product features and benefits:
- Tap for blind hole threads in long-chipping material.
- Similar DIN 371
- Chamfer Form C
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
| Thread | UNJC |
| Nominal Size | 3/8 |
| Threads per inch (TPI) | 16 |
| Coolant Supply | Without |
| Geometry | TI |

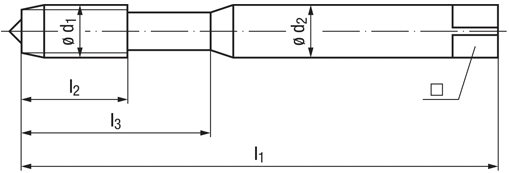

| Shank Diameter (d2) | 10mm |
| OAL (l1) | 100mm |
| Length of cutting edge (l2) | 22mm |
| Usable Length (l3) | 39mm |
| Square ■ | 8mm |
| Tap hole diameter | 8.1mm |
3/8 - 16 UNJC - EMUGE SPIRAL FLUTE 3BX TOLERANCE TI TAP TICN COATED
