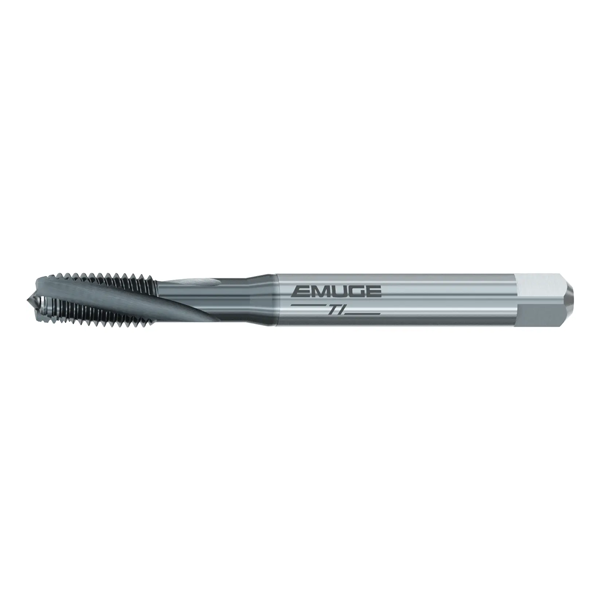

5/16 - 18 UNJC - Emuge Spiral Flute 3BX Tolerance TI Tap TICN Coated
B0459611.5486
5/16-18 UNJC - SF - TI - TICN
HSSE taps for applications in titanium.
TICN coating
Product features and benefits:
- Tap for blind hole threads in long-chipping material.
- Similar DIN 371
- Chamfer Form C
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
| Thread | UNJC |
| Nominal Size | 5/16 |
| Threads per inch (TPI) | 18 |
| Coolant Supply | Without |
| Geometry | TI |

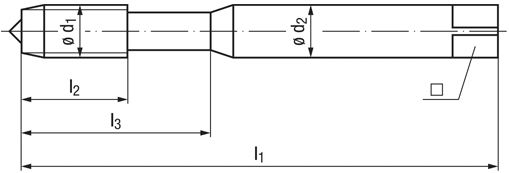

| Shank Diameter (d2) | 8mm |
| OAL (l1) | 90mm |
| Length of cutting edge (l2) | 20mm |
| Usable Length (l3) | 35mm |
| Square ■ | 6.2mm |
| Tap hole diameter | 6.7mm |
