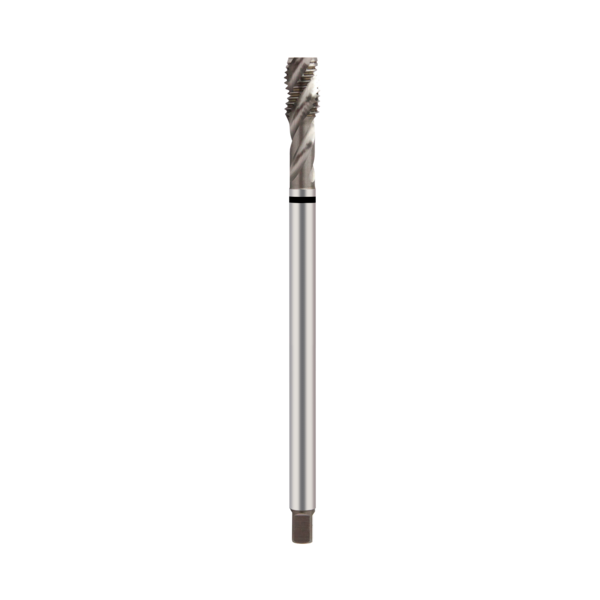

M5 x 0.8 Metric Coarse Spiral Flute Unimaster Bright Machine Tap Long Series for General Use (Black)
TM80400500L
TM80400500L - M5 x 0.8
- For universal use on most materials
- Spiral Flute for Blind Holes
- Metric Coarse
- Bright Finish
- Long Series
- DIN371

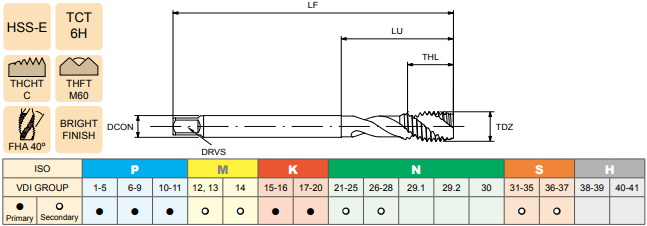

| Size (TDZ) | M5 |
| Pitch (TP) | 0.8mm |
| Thread Length (THL) | 15mm |
| Overall Length (LF) | 140mm |
| Neck Length (LU) | 25mm |
| DCON | 6.0mm |
| DRVS | 4.9mm |
| Flutes | 3 |
| Tapping Drill (PHD) | 4.2mm |
