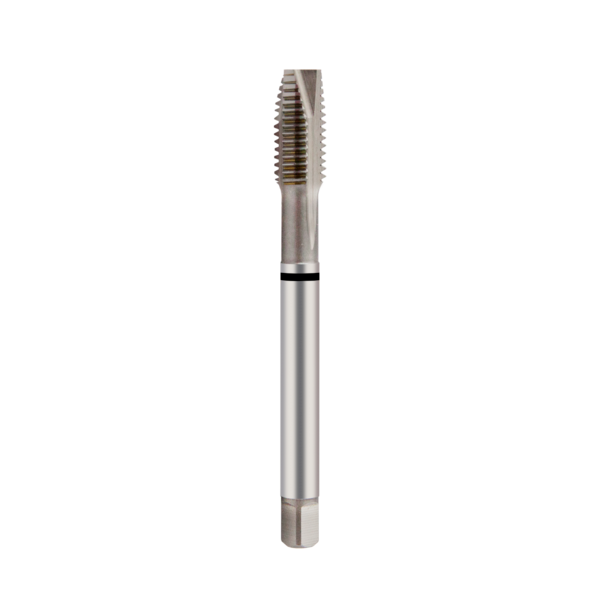

M12 x 1.75 Metric Coarse Spiral Point Unimaster Bright Machine Tap for General Use (Black)
TM81401200
TM81401200 - M12 x 1.75
- For universal use on most materials
- Spiral Point for Through Holes
- Metric Coarse
- Bright Finish
- DIN376

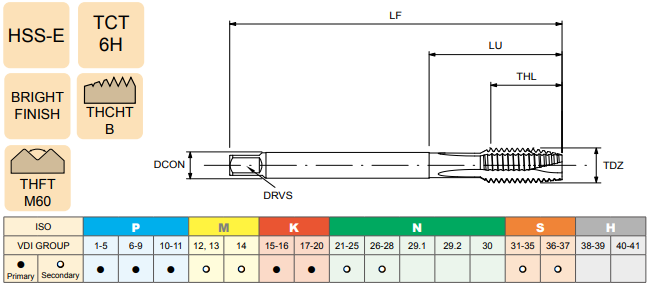

| Size (TDZ) | M12 |
| Pitch (TP) | 1.75mm |
| Thread Length (THL) | 24mm |
| Overall Length (LF) | 110mm |
| Neck Length (LU) | 44mm |
| DCON | 9.0mm |
| DRVS | 7.0mm |
| Flutes | 3 |
| Tapping Drill (PHD) | 10.2mm |
