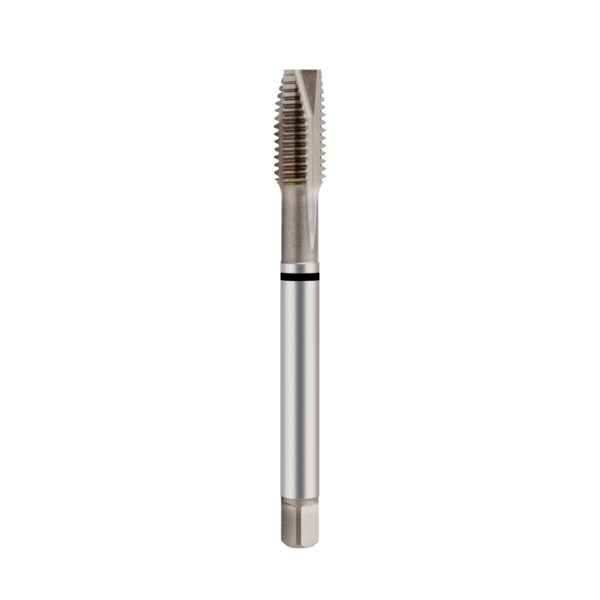

M16 x 2.0 Metric Coarse Spiral Point Unimaster Bright Machine Tap for General Use (Black)
TM81401600
TM81401600 - M16 x 2.0
- For universal use on most materials
- Spiral Point for Through Holes
- Metric Coarse
- Bright Finish
- DIN376

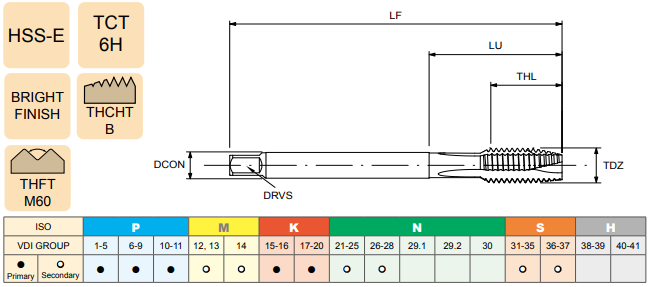

| Size (TDZ) | M16 |
| Pitch (TP) | 2.0mm |
| Thread Length (THL) | 27mm |
| Overall Length (LF) | 110mm |
| Neck Length (LU) | 44mm |
| DCON | 12.0mm |
| DRVS | 9.0mm |
| Flutes | 3 |
| Tapping Drill (PHD) | 14.0mm |
