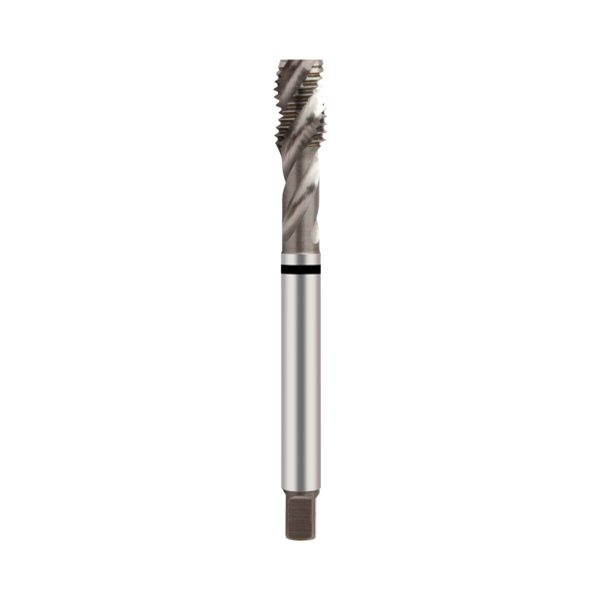

M20 x 2.5 Metric Coarse Spiral Flute Unimaster Bright Machine Tap for General Use (Black)
TM80402000
TM80402000 - M20 x 2.5
- For universal use on most materials
- Spiral Flute for Blind Holes
- Metric Coarse
- Bright Finish
- DIN376

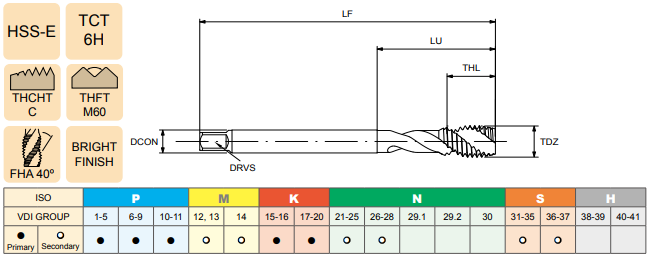

| Size (TDZ) | M20 |
| Pitch (TP) | 2.5mm |
| Thread Length (THL) | 25mm |
| Overall Length (LF) | 140mm |
| Neck Length (LU) | 54mm |
| DCON | 16.0mm |
| DRVS | 12.0mm |
| Flutes | 4 |
| Tapping Drill (PHD) | 17.5mm |
